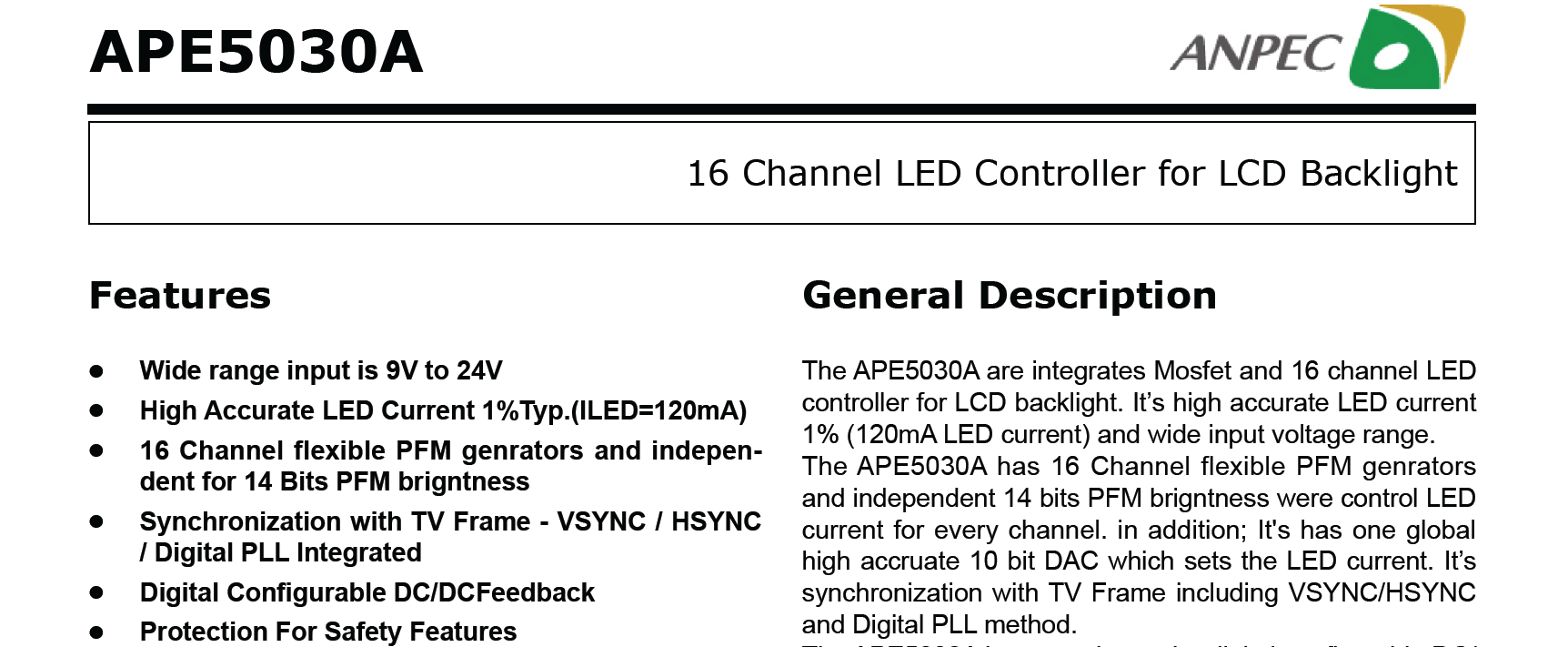

The APE5030A are integrates Mosfet and 16 channel LED
controller for LCD backlight. It’s high accurate LED current
1% (120mA LED current) and wide input voltage range.
The APE5030A has 16 Channel flexible PFM genrators
and independent 14 bits PFM brigntness were control LED
current for every channel. in addition; It's has one global
high accruate 10 bit DAC which sets the LED current. It’s
synchronization with TV Frame includin
and Digital PLL method.
The APE5030A has two pin can be digital configurable DC/16 Channel LED Controller for LCD Backlight
